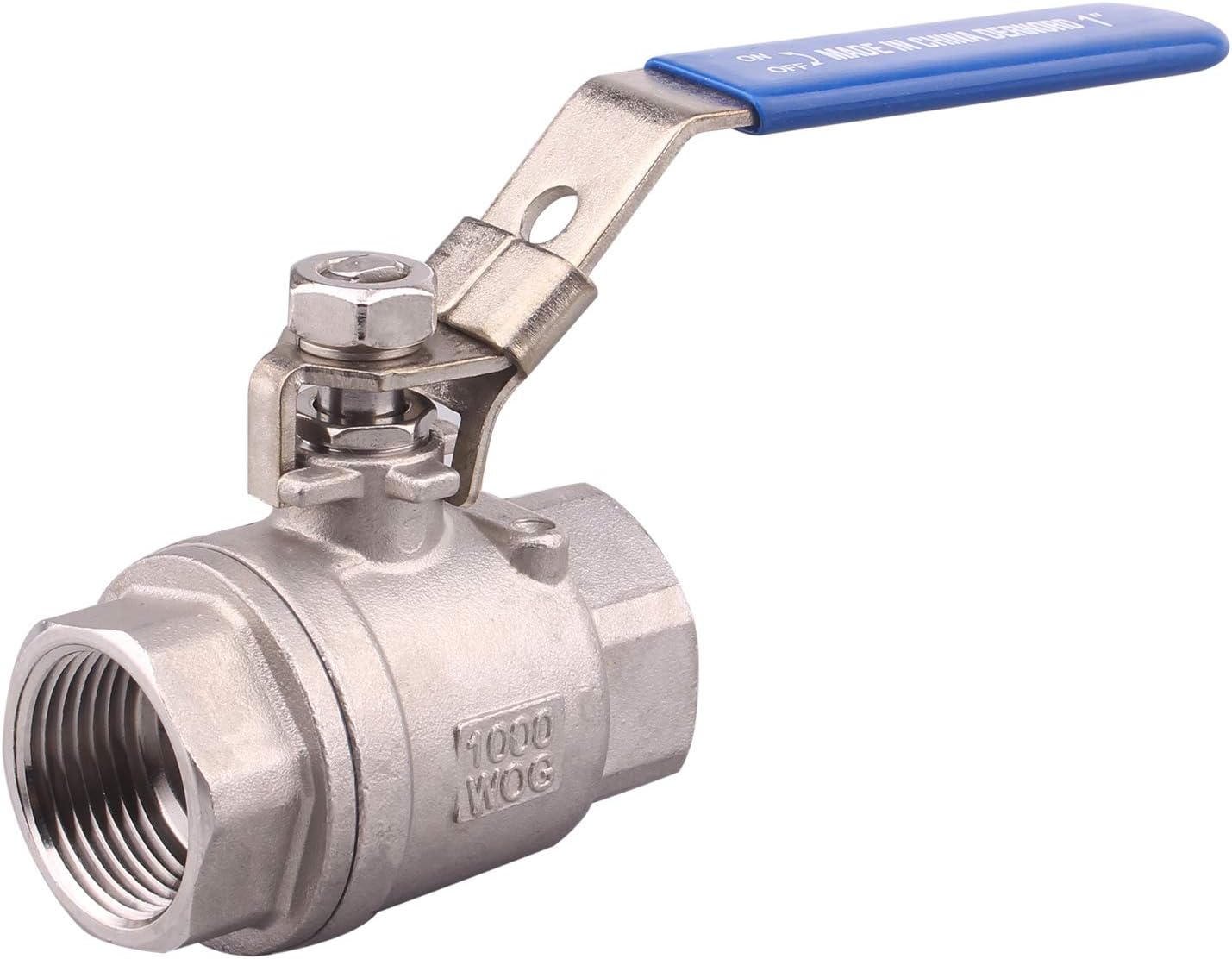

Stainless Steel 304 Ball Valve, Full Port Heavy Duty for WOG with Locking Device

Stainless Steel 304 Ball Valve, Full Port Heavy Duty for WOG with Locking Device

About DERNORD

  • DERNORD has been engaging in manufacturing commercial brewery, winery and food processing equipment like sanitary valves, fittings, tank components and pumps for many years. We uses advanced numerical control machine tools, processing and testing facilities to ensure the high quality of our products. All DERNORD products are manufactured in accordance with different surface finishes, materials and industry standards including ISO, DIN, IDF, SMS, etc. We manufacture a wide range of stainless steel sanitary valves and fittings such as stainless steel butterfly valves, sanitary ball valves, sanitary check valves, sanitary sight glasses, tube adapter and pipe connectors, etc.
  • DERNORD full port ball valve with locking device is not only own with the functions of opening quickly, easy to maintain, good sealing but also safety fire-safe and anti-static designs. DERNORD designs various kinds of ball valves for one-piece, two-piece, three-piece, thread end, flange type, full port. Mini ball valve is also available. The selection of ball valve material includes stainless steel 304 and stainless steel 316. Chose the suitable ball valve to use in piping system.

45.00$

Compare
SKU: DER-304BVFPHD Category:

Description

About this item

  • Serviceable Valve – Can be taken apart via threads, Female NPT Ports
  • Handle:Heavy duty handle with LOCKING DEVICE
  • Body & Ball Type:304 Stainless Steel.Temp Range:-60 F to 450 F
  • Nominal Working Pressure:1000 WOG:Max 1000 psi for Water, Oil, Gas.
  • Fluid temp range: -20°f to 410°f
